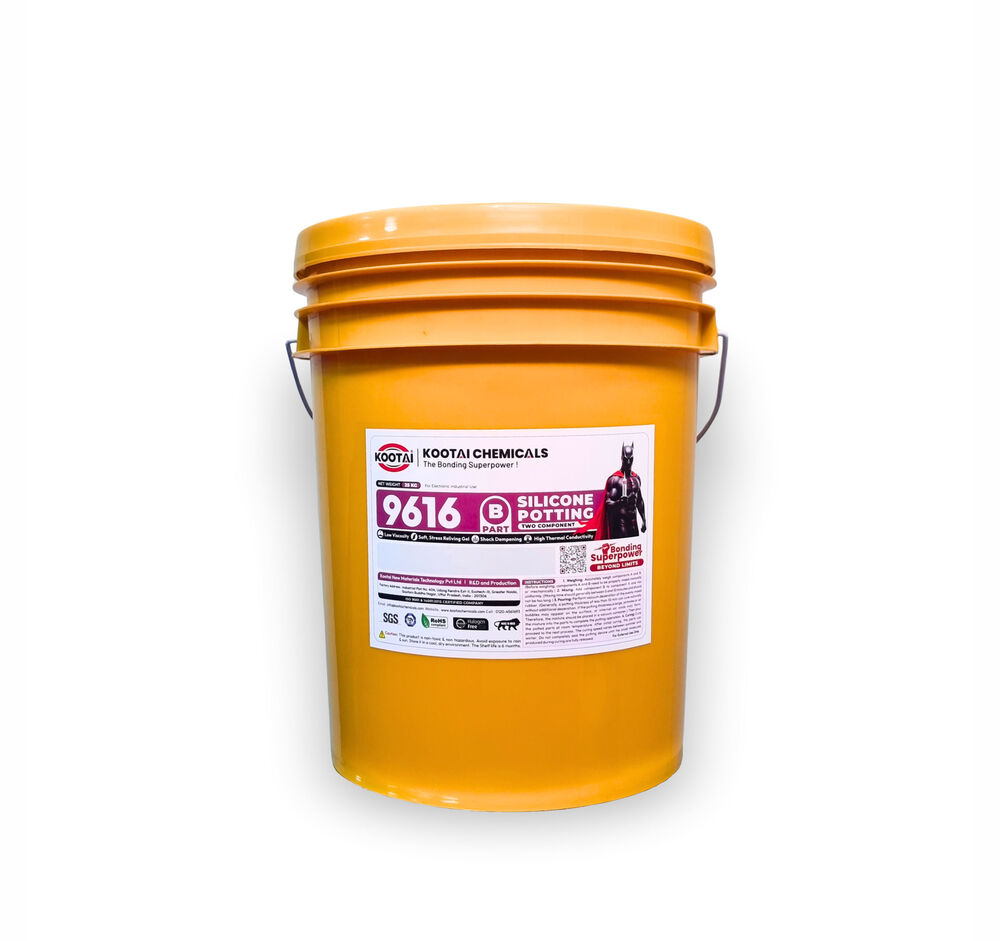

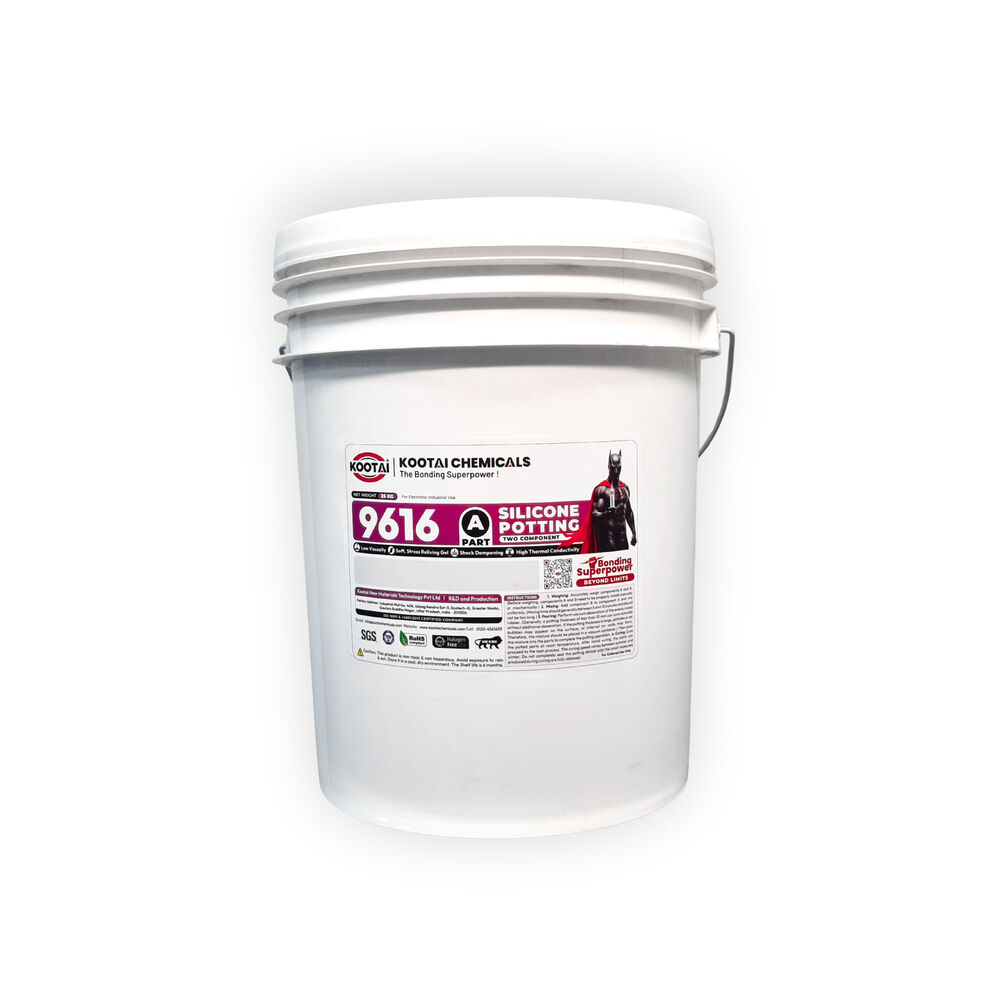

Silicone Potting 9616

Product Description

Key Differentiators
o High thermal conductivity of 1.6 watts per meter kelvin
o Cures at room temperature without exothermic reaction
o Stable viscosity with smooth flow and easy mixing
o Adheres well to most electronic materials without primer
o RoHS compliant and lead free

Product Features
o Soft and durable cured surface with Shore A 50 to 80 hardness
o Volume resistivity greater than 1.0 times ten to the power of fourteen ohm centimeter
o Dielectric strength of 10 kilovolts per millimeter
o Thermal conductivity between 1.6 and 1.8 watts per meter kelvin
o Excellent resistance to moisture, shock, and temperature extremes
o Long pot life and full cure within 24 hours
o Compatible with automated glue filling equipment

Industrial Applications
o Encapsulation of high power LED bulbs
o Potting of sensors, transformers, and signal amplifiers
o Sealing of HID stabilizers and ignition modules in automotive systems
o Moisture and voltage protection for PCBs and power modules
o Protection of general electronics under harsh environmental conditions

Compatible Surfaces
o Polycarbonate PC
o Acrylonitrile Butadiene Styrene ABS
o Epoxy
o Metal enclosures
o Printed circuit boards PCBs

Frequently Asked Questions

Q1 What is the recommended mixing ratio
A1 Mix Part A and Part B in a 1 to 1 ratio by weight. After stirring Part A and shaking Part B, mix both thoroughly for 5 to 10 minutes.

Q2 Is vacuum degassing necessary
A2 For encapsulation below 10 millimeters, natural defoaming is sufficient. For thicker sections, degassing under vacuum at 70 millimeters of mercury for 3 minutes is recommended.

Q3 What is the curing time
A3 Surface drying occurs in 30 to 90 minutes. Full curing is typically complete within 8 to 24 hours depending on ambient temperature.

Q4 Is a primer required for adhesion
A4 No. Primer is not required. It adheres well to PC, ABS, Epoxy, and other materials without additional surface treatment.

Q5 Is the product safe and compliant
A5 Yes. It is lead free and compliant with RoHS 2002 95 EC standards.
