Product Description

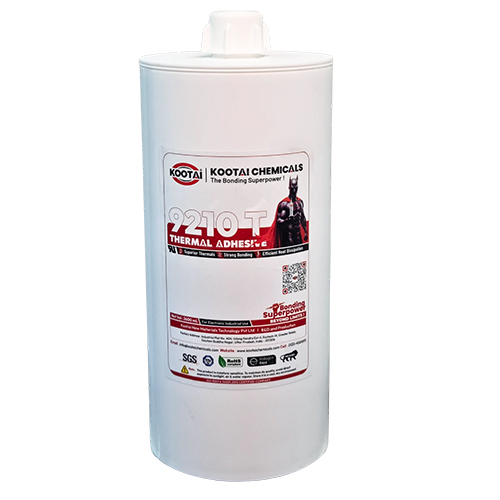

Kootai 9210T Thermal Adhesive is a neutral-cure, RTV silicone-based compound specially designed for thermal management in electronics. Its high viscosity and single-component format make it easy to apply without additional mixing. Once cured, it forms a resilient, flame-retardant elastomer with strong adhesion to metals, glass, plastics, and PCBs. It combines excellent dielectric strength (25 kV/mm), volume resistivity (1.210 cm), and weather resistance, making it ideal for bonding components exposed to heat cycles and demanding environments. It shows no copper corrosion, is safe for electronics, and meets industrial insulation and flame-retardance standards.
Industrial Application
- - Bonding of heat sinks to electronic components
- - Moisture- and dust-proof sealing of sensitive modules
- - Thermal interface bonding where mechanical mounts are absent
- - Shock absorption for high-reliability electronics
- - Adhesion in electrical assemblies requiring insulation and flame resistance
Features
- Thermal conductivity: 1.0 W/mK
- - Operating range: -50C to +200C
- - Flame retardant with self-extinguishing behavior
- - Non-corrosive, neutral cure formulation
- - High adhesion across metals, plastics, and PCBs
- - Excellent dielectric properties for electrical insulation
- - Easy-to-use one-part system with no mixing required
FAQ
Q1: What is the curing behavior of 9210T?
A: Curing progresses with humidity at ambient temperature. Tack-free time is approx. 1015 minutes at 25C/50% RH. Full cure depends on thickness and conditions but typically completes within 57 days.
Q2: Can it withstand thermal cycling?
A: Yes, it operates reliably between -50C and +200C without cracking or loss of adhesion.
Q3: Which substrates does it bond well with?
A: Excellent on copper, aluminum, stainless steel, brass, glass, ABS, PET, and PCB. Moderate adhesion on PC; poor on PP/PE unless pretreated.
Q4: Is it electrically insulating?
A: Yes, with dielectric strength 25 kV/mm and low dielectric loss (0.015 at 50Hz).
Q5: How should it be stored?
A: Store sealed in a cool, dry place under 25C. Shelf life is 6 months.
